Overview

Microsoft Windows produces log events from various services and programs but does not natively support forwarding events to external log collectors. The LogZilla Windows Event Forwarder reads local Windows events and forwards them to LogZilla in JSON format.

Prerequisites

Required: The LogZilla Windows Event Forwarder must be installed on each Windows system. Without the agent, no Windows events will be forwarded to LogZilla.

App Function

Windows events forwarded by the LogZilla Windows Event Forwarder are processed to extract security-relevant metadata including:

Event IDs and descriptions
Usernames and domain information
Source IP addresses
MITRE ATT&CK technique mappings
Process creation details for suspicious activity detection

Device Configuration

Download the agent from the LogZilla extras repository
Install the agent on each Windows system to monitor
Configure the agent with the LogZilla server address and ingest token
Select which Event Logs to forward (Security, System, Application, etc.)
Start the LogZilla Windows Event Forwarder service

The agent configuration interface allows selection of specific Event Logs and filtering options.

Vendor Documentation

Parsed Metadata Fields

Tag Name	Example	Description
`Vendor`	`Microsoft`	Vendor name for cross-vendor filtering
`Product`	`Windows`	Product name for cross-vendor filtering
`Event Class`	`auth`, `security`, `system`	Cross-vendor event classification
`Event Type`	`login_failure`	Specific event type (login_failure, login_success, account_created)
`MSWin EventID`	`4625`	Windows Event ID
`MSWin EventLog`	`Security`	Windows Event Log name
`MSWin Category`	`Logon/Logoff`	Windows event category
`MSWin Sub Category`	`Logon`	Windows event sub-category
`Criticality`	`High`, `Medium`, `Low`	Event criticality level
`MSWin Description`	`An account failed to log on`	Human-readable event description
`MitreId`	`T1110`	MITRE ATT&CK technique ID
`MITRE Tactic`	`Credential Access`	MITRE ATT&CK tactic category
`User`	`jsmith`	Target username for auth events
`User Domain Name`	`CORP`	Target user domain name
`SrcIP`	`192.168.1.100`	Source IP address
`MSWin Failed Login User`	`admin`	Username for failed login (4625)
`MSWin Failed Login Source Network`	`192.168.1.100`	Source IP for failed login (4625)
`MSWin New Process`	`C:\Windows\System32\cmd.exe`	New process path (4688)
`MSWin Process Args`	`powershell.exe -enc ...`	Process arguments (4688)
`MSWin Parent Process`	`C:\Windows\explorer.exe`	Parent process (4688)
`MSWin Suspicious Indicator`	`Encoded Command`	Suspicious activity indicator

MITRE ATT&CK Mapping

The app maps security-relevant Windows events to MITRE ATT&CK techniques:

Event ID	Technique	Tactic	Description
4625, 4740, 4776	T1110	Credential Access	Brute Force
4771, 4768, 4769	T1558	Credential Access	Kerberos Tickets
4720	T1136.001	Persistence	Create Account
7045, 4697	T1543.003	Persistence	Windows Service
4672, 4728, 4732, 4756	T1078	Privilege Escalation	Valid Accounts
1102	T1070.001	Defense Evasion	Clear Event Logs
4624	T1021	Lateral Movement	Remote Services
4688 (suspicious)	T1059	Execution	Command Interpreter

Process creation events (4688) are only flagged when suspicious patterns are detected, such as encoded PowerShell commands, LOLBins, or execution from temporary directories.

Triggers

Trigger Name	Condition	Action
Windows: Suspicious Process Execution	4688 with suspicious indicator	Alert
Windows: MITRE ATT&CK Activity	Any event with MitreId	Alert
Windows: Failed Login Attempt	Event ID 4625	Alert
Windows: Account Locked Out	Event ID 4740	Alert
Windows: Audit Log Cleared	Event ID 1102	Alert
Windows: Account Created	Event ID 4720	Alert
Windows: Account Deleted	Event ID 4726	Alert
Windows: Security Group Changed	Event ID 4728, 4732, 4756	Alert
Windows: Special Privileges Assigned	Event ID 4672	Alert
Windows: New Service Installed	Event ID 7045	Alert
Windows: Unexpected Shutdown	Event ID 6008	Alert

Incoming Log Format

The Windows Syslog Agent converts native Windows events into JSON format for LogZilla processing.

Log Examples

Windows Event Viewer

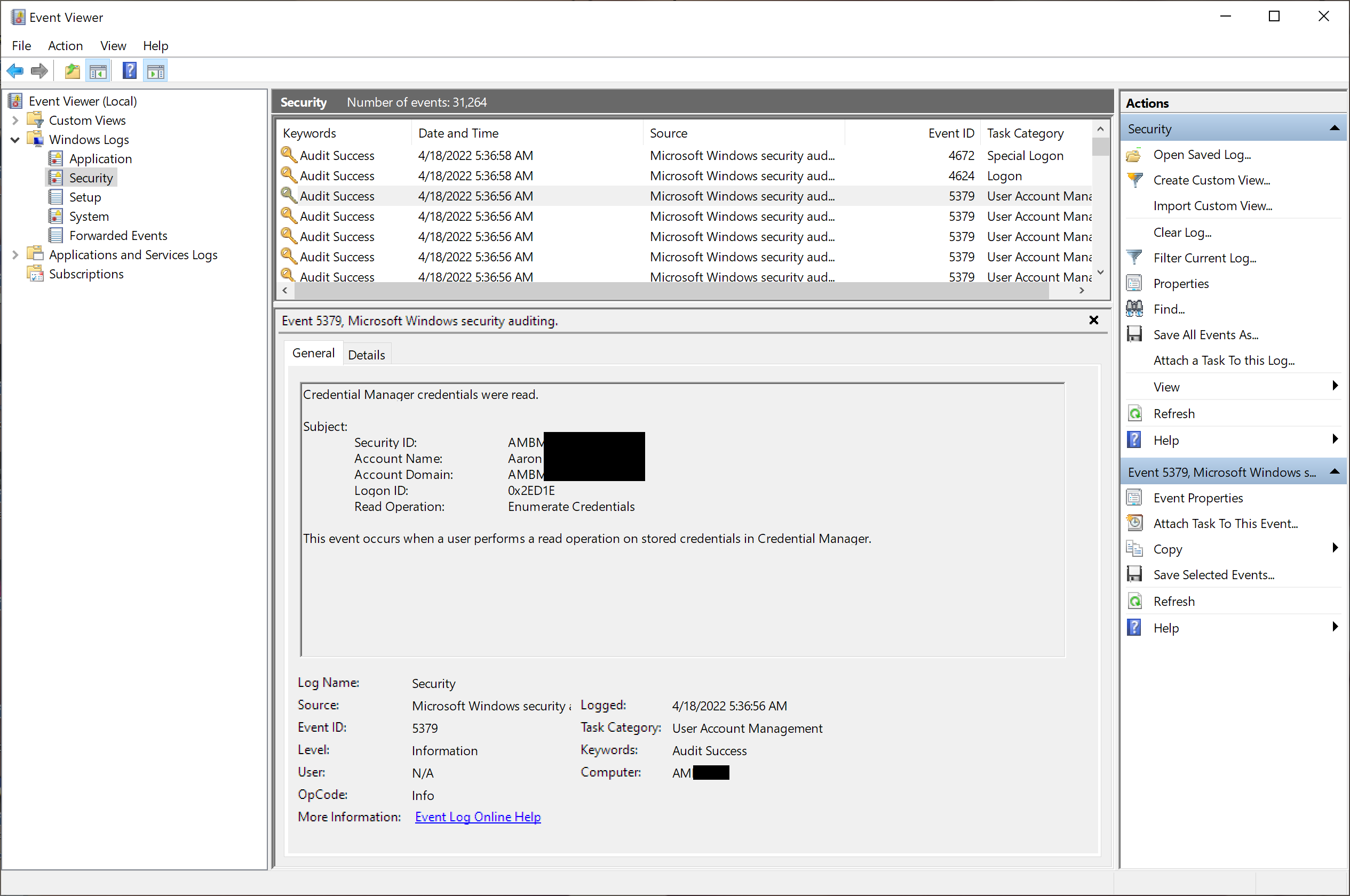

Windows Event Message

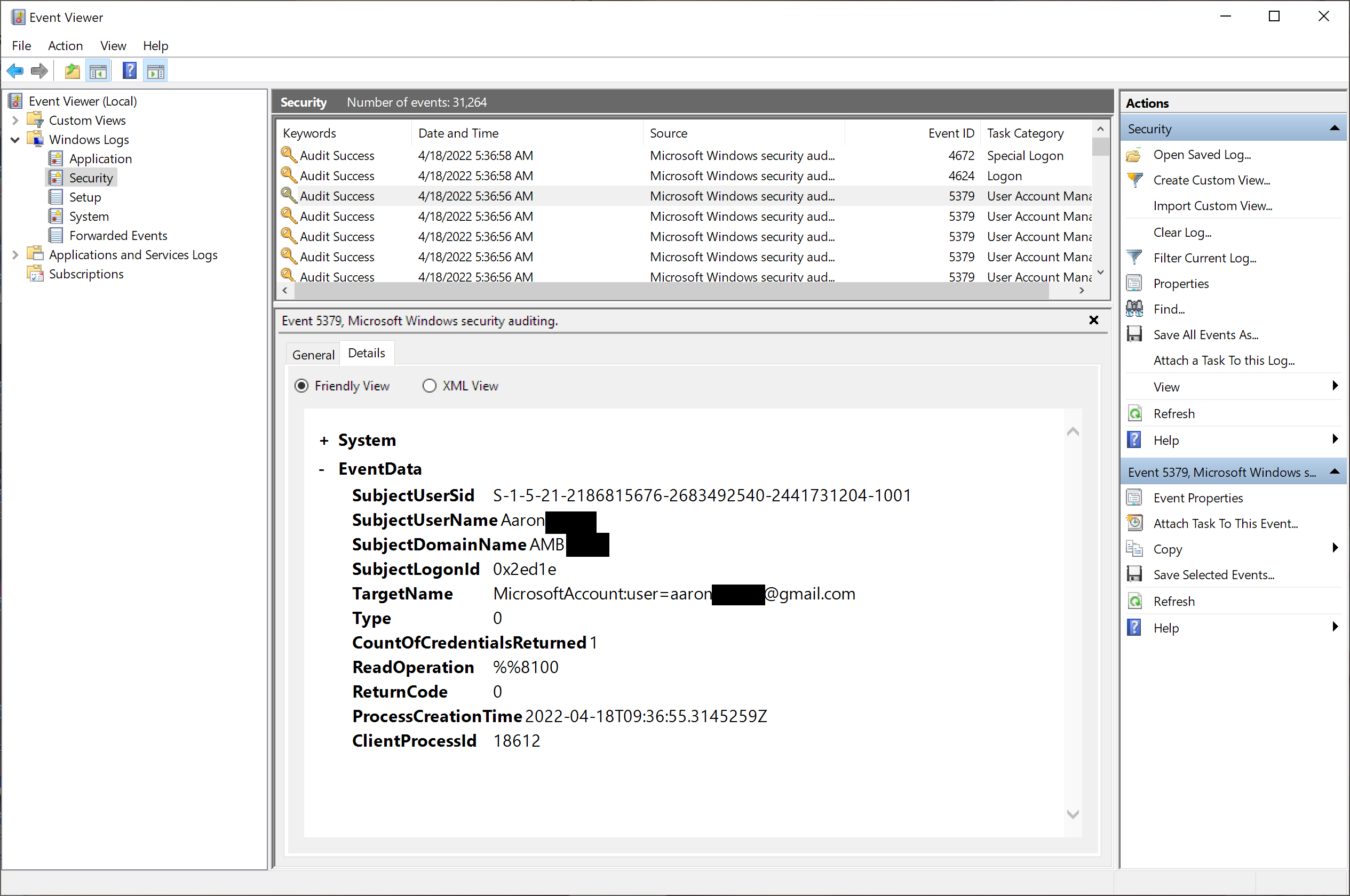

Windows Event Raw Data

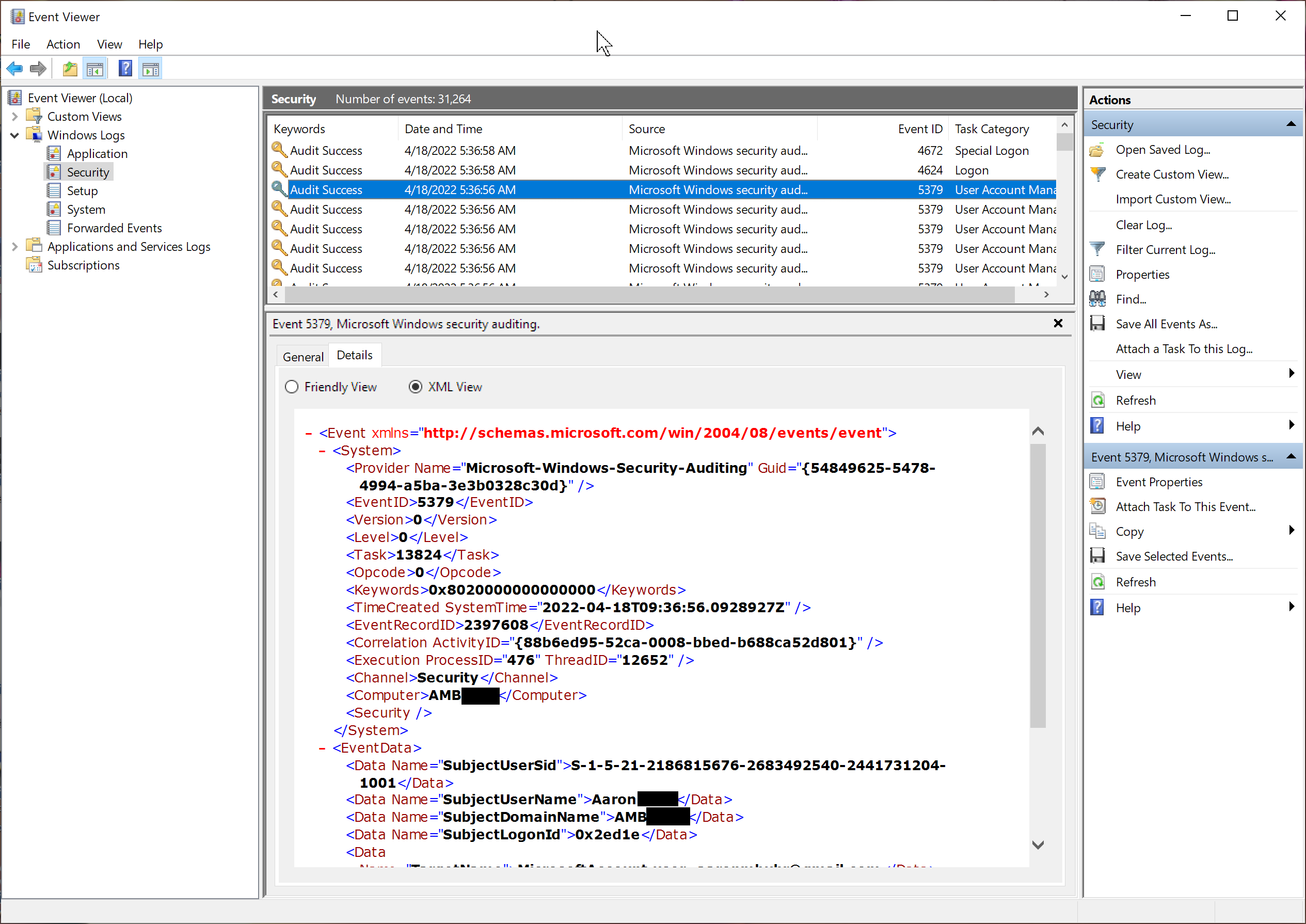

Windows Event XML Data

JSON Format (LogZilla Input)

The Windows Agent sends events via HTTP with metadata in extra_fields:

json
{
  "host": "WIN-SERVER01",
  "program": "Microsoft-Windows-Security-Auditing",
  "message": "EventID=\"4625\" EventLog=\"Security\" An account failed to log on",
  "extra_fields": {
    "_source_type": "WindowsAgent",
    "_log_type": "eventlog",
    "event_id": "4625",
    "event_log": "Security",
    "computer": "WIN-SERVER01",
    "event_user_name": "jsmith",
    "event_user_domain": "CORP",
    "SubjectUserSid": "S-1-5-21-1234567890-1234567890-1234567890-1001",
    "SubjectUserName": "WIN-SERVER01$",
    "SubjectDomainName": "CORP",
    "TargetUserName": "jsmith",
    "TargetDomainName": "CORP",
    "WorkstationName": "WORKSTATION01",
    "IpAddress": "192.168.1.100",
    "ProcessName": "C:\\Windows\\System32\\svchost.exe"
  }
}

Standard fields (host, program, message) are at the top level. Event-specific fields are in extra_fields and vary by Event ID.
